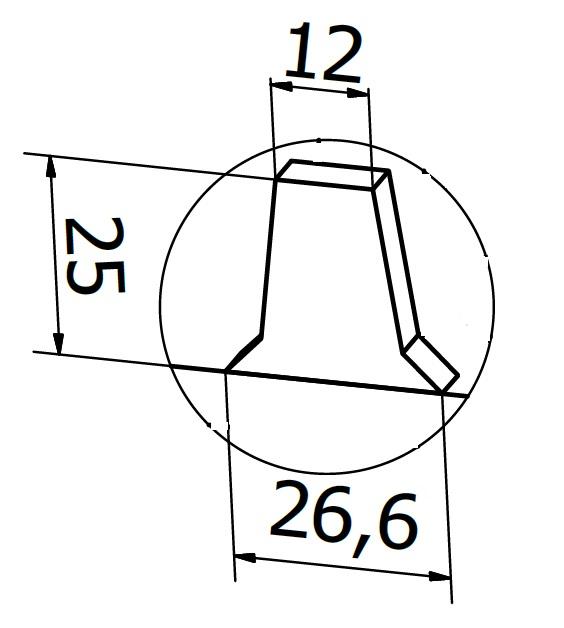

Profile 25-03
Profile 25-03:
Recommended operating parameters
The minimum diameter of the drums (mm)
Maximum effective working angle
Opportunity to working in trough
315
35°
NO
B
mm
b
mm
t
mm

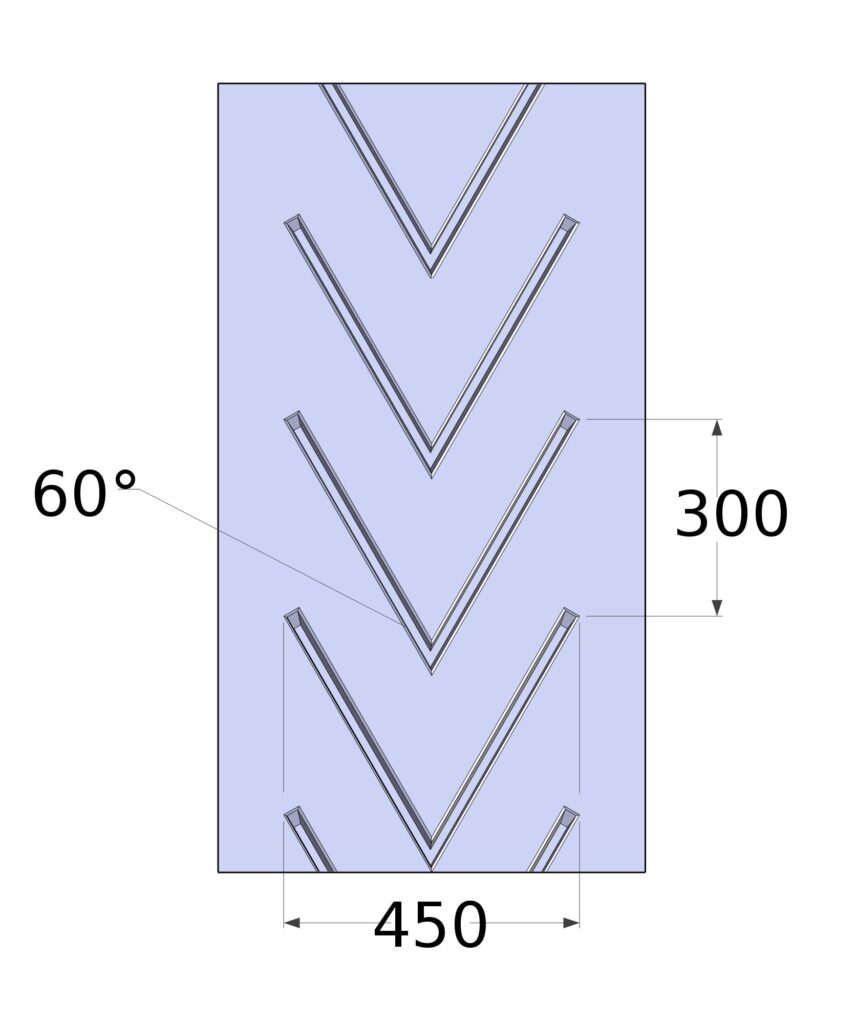

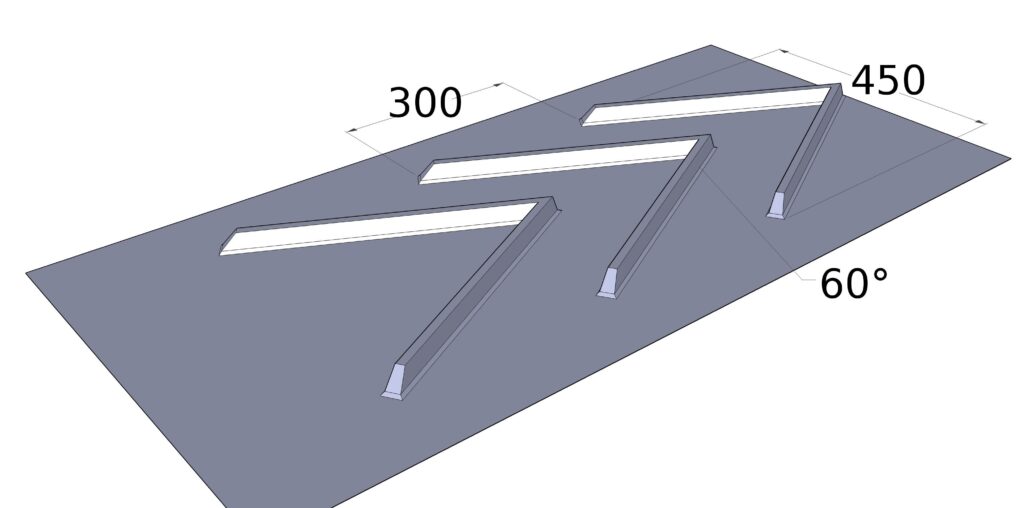

Herringbone 60º
500 ÷ 800
450
300
Return back to the "Profiles" tab
