Tile connections (unilinka)
The plate joints are at the edge between the repair measures and the mechanical joints. This type of connection is characterized by quick and easy assembly, enabling the connection to be made in a short time. Exotic tools are not needed to use the connection, and the connections are used to repair or connect belts with a thickness of 5-25 mm working under load.

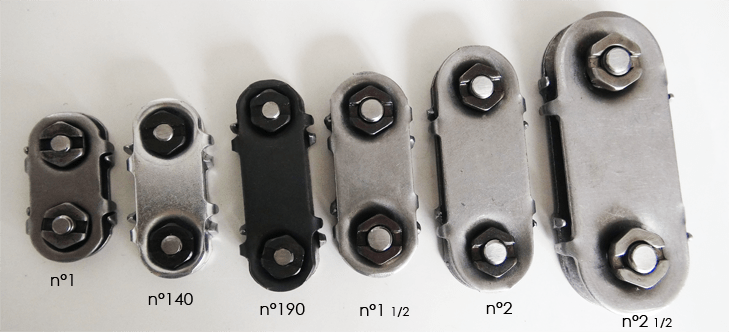

| yeah. 1 | yeah. 140 | yeah. 190 | yeah. 1 1/2 | yeah. 2 | yeah. 2 1/4 | yeah. 2 1/2 | yeah. 3 | |
| Tape thickness , mm | 5-11 | 5-11 | 8-14 | 11-17 | 14-21 | 14-30 | 19-25 | > 24 |
| belt strength , N/mm | 315 | 400 | 630 | 500 | 800 | 1000 | 800 | 1000 |
| Drum min. Ø, mm | 250 | 300 | 400 | 400 | 700 | 850 | 1000 | 1200 |
| Material of manufacture | Galvanized Steel / MegAlloy* / Stainless AISI 316* / non-magnetic Everdur* | |||||||
| Packaging | standard packaging 25 or 100 pcs. | standard package 10 pcs. | ||||||
* Goods available on request!
Connection available on request only.
We offer from the warehouse Unilinka Polish production L-70.
Information about other products can be found at www.c-t-p.com.pl
