MiniRecord

MiniRecord connections

MiniRecord connections use staples as a fastening element. MiniRecord is suitable for joining tapes with a thickness of 1.5-6.4 mm working under a load of 20-40 N/mm.

Mini record

The most important features and advantages of the MiniRecord connection :

  • previously installed staples make it possible to speed up the repair or joining of the tape by eliminating the need to look for appropriate fastening elements;
  • easy installation with a special tool and hammer;
  • beveled edges ensure smooth cooperation with the conveyor elements and do not damage the transported products;
  • staples firmly jam in the tape without destroying its structure;
  • made of galvanized or stainless steel.

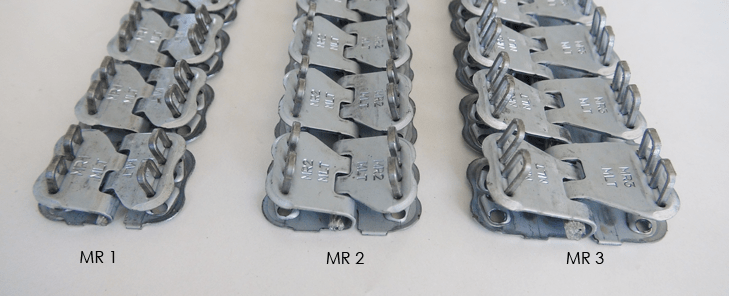

połączenie Mini record mr1 mr2 mr3

Technical data:

MR 1 MR 2 MR 3
Tape thickness, mm 1.5 – 3.2 3.0 – 5.0 4.8 – 6.4
belt tension, N/mm 20 32 40
belt strength, N/mm 300 350 400
Drum min. Ø, mm 50 75 100
Link material galvanized or stainless steel 304L
bar Ø, mm 2.1 2.5 3.6 3.0 5.1 5.1 3.5 4.0
Material of the bar PA-coated stainless steel PA coated steel PA-coated stainless steel PA coated steel PA-coated stainless steel galvanized steel coated with PA PA coated steel PA coated steel
Packaging 4 strips x 300, 600, 1000, 1200, 1500 mm with a bar. Other lengths up to and including 2750 mm on request.
Connection available on request only.
