Super-Screw Connections

Super-Screw connections are distinguished by innovative design solutions and high-quality workmanship. Thanks to this, their above-average service life was obtained. Simple assembly, which does not require presses or a specialized team, reduces the downtime of transporting equipment.
połączenia super screw

The most important advantages of the Super-Screw® connection:

Durability  – a high degree of durability results from the use of special fiber fabrics enriching various rubber coatings;

Execution  – depending on the intended use, made of rubber resistant to abrasion or oils and fats, resistant to high temperatures, flame retardant or suitable for carrying foodstuffs;

Leakproof  – Super-Screw® connections are installed axially. Super-Screw® sling straps are water and dust proof;

Flexible – Compared to traditional mechanical joints, Super-Screw® is flexible and has a high stretch. This feature is particularly important for the ability to form a trough and resist short overloads;

Scraper Compatibility  – Super-Screw® connections can be used with all cleaning devices, including carbide;

Easy installation  – thanks to the special self-tapping screws supplied with the connection, no specialized tools are needed, an electric or pneumatic screwdriver is enough;

Possibility  of mounting from the running side;

Perfect  anchorage away from the webbing edge with a strong clamping effect.

Detailed information on the technical characteristics of the Super-Screw® connection can be found in the table.

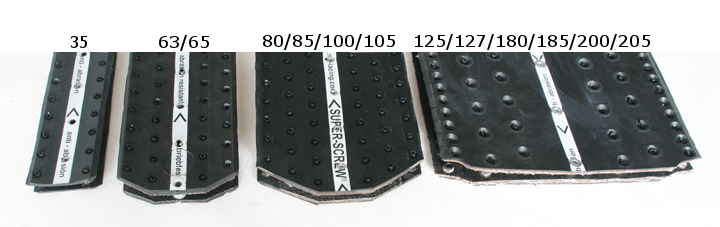

Super-Screw® 35 63 65 80 85 100 105
Tape thickness, mm m 4-11 4-13 4-13 4-15 5-15 6-15 6-15
Maximum belt tension, N/mm 31 63 63 80 80 100 100
Maximum belt strength, N/mm 315 630 630 800 800 1000 1000
Minimum drum diameter 160/200 220/300 250/300 250/350 270/400 300/400 350/400
Super Screw® top plate thickness (± 1 mm), mm 4.5 5 6,5 6 7,5 7,5 9
Thickness of the Super Screw® bottom plate (± 1 mm), mm 3,7 4 4,5
Super Screw® plate width, mm 62 110 156
Number of screws per meter 110 200 280
screw diameter, mm 5
Length of Super Screw® plate in a roll, mm 25
Super-Screw® 125 127 180 185 200 205
Tape thickness, mm 7-20,5 7-19 7-20,5 7-19 7-19 7-17,5
Maximum belt tension, N/mm 125 125 180 180 200 200
Maximum tape strength, N/mm 1250 1250 1800 1800 2000 2000
Minimum drum diameter 350/400 350/500 400/800 500/800 500/1000 650/1000
Super Screw® top plate thickness (± 1 mm), mm 6,5 8,5 6,5 8,5 8,5 10
Thickness of the Super Screw® bottom plate (± 1 mm), mm 6
Super Screw® plate width, mm 266
Number of screws per meter 254
screw diameter, mm 6,3
Length of Super Screw® plate in a roll, mm 15

Application:

The Super Screw ® connection  is used to connect fabric-rubber tapes and is comparable in quality (technical parameters) to vulcanized connections. An exemplary assembly time of a joint on a 600 mm wide tape takes about 1 hour, and simple assembly allows you to reduce downtime costs and shorten the duration of failure to a minimum. The innovative design solution of the connection made it applicable in many areas of the economy, from heavy industry to the food industry and agriculture. The technical parameters of Super Screw ®  make it possible to use the connection in belts with profiles, drivers, valances, scrapers (eg HOSCH) as well as it can be mounted on belts with steel cord.
