Carriers frills | C-T-P | Tape and Belt Center

Cleats, frills

PVC / PU conveyor belts with cleats, side valances, guiding profiles

Drivers:

Used, among others, for inclined transport, preventing the transported material from moving. Depending on the type of material and working conditions, cleats of various heights, spacings and arrangements are used. We offer special cleats that can work with small roll diameters, and cleats with additional reinforcement.

Possibilities of using carriers:

Driver system number
Profile type, driver (Section)	1	2	3	4	5	6	7	8
Wedge (K)	+	+	+	+	+	+	+	+
Square (V)	+	+	+	+	+	+	+	+
rectangular (R)	+	+	+	+	+	+	+	+
T, L, S	+	–	–	–	–	–	+	+
TG, LG, SG	+	–	–	–	–	–	+	+

Driver systems for PVC / PU tapes:

Driver types:

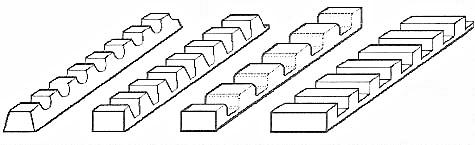

K, V, R - profiles made of PVC (can be used as drivers or guiding profiles)

T, L, S - made of PVC / TG, LG, SG - made of PVC and reinforced with fabric / UT, UL - made of PU

Profiles placed on the carrier side.
Belt used to transport coins.

Belt with cleats with additional reinforcement preventing the cleat from breaking

Long frills:

Made of PVC or PU, resistant to oils and fats, reinforced with or without fabric, with or without foot. They are FDA approved for contact with unpackaged food. Used for broken conveyors, e.g. of the "swan neck" type. Depending on the needs and performance, it is possible to work with small roll diameters.

Guide profiles:

Made of PVC or PU, flat or corrugated. They help guide the tape.
