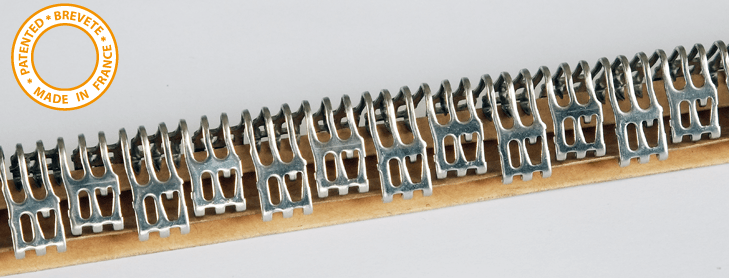

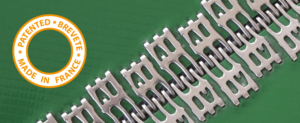

Clip'N Lock® connection

Produced and patented by MLT Minet Lacing Technology SA,
Clip’N Lock ^® connections are a low-profile yet reliable solution for thin (1.5–5 mm) PVC/PU plastic tapes. Thanks to the developed and implemented modern production methods, this connection is 15% more durable than comparable ones available on the market. The connection has 33% more teeth anchoring it in the belt, which translates into 15% greater strength than comparable connections available on the market

the ability to bend makes Clip’N Lock ^® an indispensable solution for trough belts;
compact design eliminates the risk of losing individual links;
deep anchoring in the tape means that Clip’N Lock ^® only slightly protrudes above the surface;
made of non-magnetic stainless steel 316L is a guarantee of long-term and effective operation, as well as compatibility with magnetic conveyors.

Technical data:

	Clip’N ^Lock® 25		Clip’N ^Lock® 30		Clip’N ^Lock® 40	Clip’N ^Lock® 50
Tape thickness, mm	1 – 1.5		1.5 – 1.8		2 – 3	3 – 5
Drum min. Ø, mm	20		thirty		40	60
Joint thickness, mm	2.25		2.54		3.175	3.67
Connector material	stainless non-magnetic 316L steel
bar Ø, mm	1.0	1.5	1.5	1.8	2.1	2.6
Material of the bar	stainless or nylon-coated stainless steel			stainless steel	nylon coated stainless steel	stainless or nylon-coated stainless steel
Packaging	5 slats 150, 300 or 600 mm long without a bar		5 slats of 300, 600 or 1200 mm length without a bar

Connection available on request only.
The assembly of the connection is carried out by means of a fastening device.
